/ Product catalogue / Domestic ventilation / Residential axial fans / Classic / Quiet-dMEV DC / Quiet-dMEV 100 DC T| Unit of measurement | Quiet-dMEV 100 DC T | |||||
| Speed | - | 1 | 2 | 3 | 4 | 5 |
| Connected air duct size | mm | 100 | ||||
| Maximum supply voltage | V | 240 | ||||
| Minimum supply voltage | V | 220 | ||||
| Power supply frequency | Hz | 50/60 | ||||
| Rated power | W | 0.7 | 0.9 | 1.7 | 2.1 | 3.4 |
| Unit current | A | 0.014 | 0.017 | 0.024 | 0.028 | 0.039 |
| Maximum airflow | m³/h | 22 | 29 | 47 | 54 | 83 |
| Sound pressure level LpA at 3 m | dB(A) | 10 | 11 | 13 | 14 | 21 |
| Ambient air temperature min | °С | 1 | ||||
| Ambient air temperature max | °С | 45 | ||||
| Ingress protection rating | - | IP45 | ||||
| Impeller material | - | Plastic | ||||
| Trademark | Vents | |||||
| Model | Quiet-dMEV 100 DC T | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -35.6 | A | -17.6 | E | -7.4 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Maximum flow rate (m³/h) | 83 | |||||
| Electric power input (W) | 3.4 | |||||
| Reference flow rate (m³/s) | 0.015 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.039 | |||||
| Control typology | Clock control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 34 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 44 | 44 | 44 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3667 | 1874 | 848 | ||||

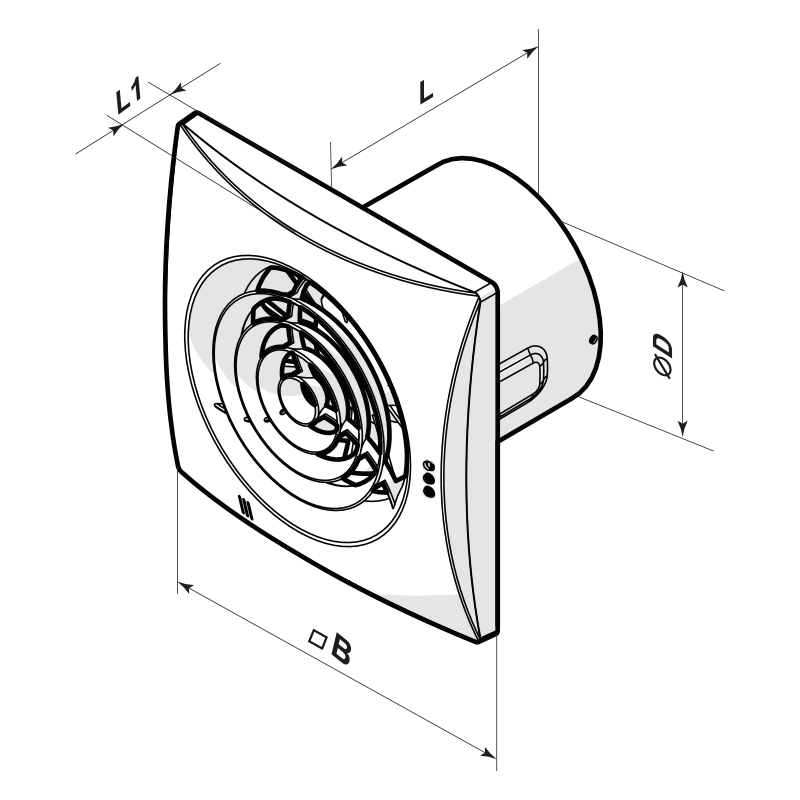

| Ø D | B | L | L1 |
|---|---|---|---|
| 99 | 158 | 81 | 26 |
