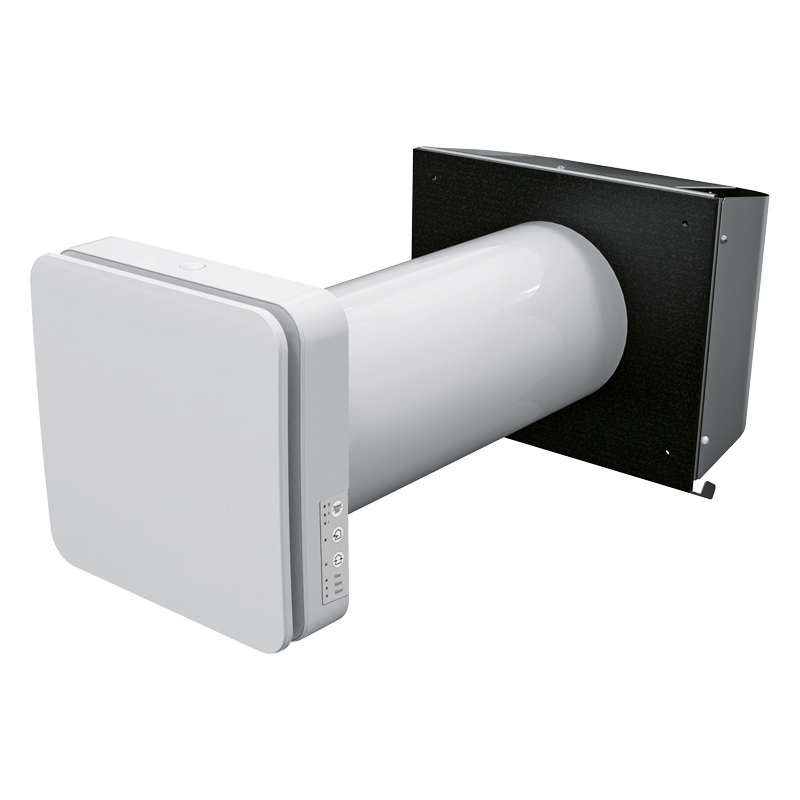

Series Vents TwinFresh Atmo Wi-Fi C1 L035 22

TwinFresh Atmo – is a brand new dMVHR solutions for newbuild and retrofit single-room applications, offer efficient and cost-effective ventilation
  • Heat exchanger type: Regenerative
  • Heat exchanger material: Ceramic
  • Filter: ISO Coarse >50% (G3) (ISO Coarse >60% (G4)
  • Sound-insulated casing
  • CO2 sensor: Optional
  • Shutters
ADVANTAGES

COMPACT

Brand new, stylish design of indoor unit will fit into any interior


ENERGY SAVING

High efficiency (up to 95 %) heat recovery to reduce energy costs and helps you save on heating and air conditioning

Built-in humidity sensor allows unit to automatically select the mode, control the humidity level and prevents mold growth

Night mode timer (8 hour low speed)
Possibility to connect external sensors

Equipped with an automatic shutter to prevent undesired external entry when turned off (optional)

 Built-in light sensor controls the brightness of the control panel LEDs and activates night mode automatically.

 Silent operation, making it perfect for living spaces.

 Low power consumption, making Atmo suitable for continuous operation without significantly impacting energy bills.

 Remote management through a remote control.

 Atmo is easy to mount through external walls without the need for complex ducting.

 Operation within a network guarantees balanced ventilation.

 Higher degree of supply air purification can be achieved with an ISO ePM1 60 % (F7) filter.

EASY TO CONNECT, EASY TO CONTROL
The TwinFresh Atmo series ventilators
are equipped with a remote control.

Operation modes:

  • Switch on/off the unit
  • Speed selection (3 different speeds available)
  • Ventilation with heat recovery / Ventilation / Extract or supply
  • Party mode: switch on speed 3 for 4 hours
  • Night mode: the integrated light sensor sends a signal to switch the ventilator to low-speed mode (speed 1 for 8 hours)
  • Humidity control mode selection
  • Filter replacement indicator
  • Alarm emergency indicator


OPERATION IN A NETWORK

Any number of ventilators may be connected into one network. Control is carried out through the first ventilator.
Lineup Vents TwinFresh Atmo Wi-Fi C1 L035 22 Air flow in ventilation mode, m³/h Air flow in heat recovery mode, m³/h Sound pressure level LpA at 3 m, dB(A) Humidity sensor CO2 sensor
50 25 27 Optional Optional
Datasheet
"VENTS TwinFresh Atmo Wi-Fi C1 L035 22" product description 09-2025
3.33 Mb
TwinFresh Atmo Wi-Fi C1 L035 22 - image 1
270 Kb
