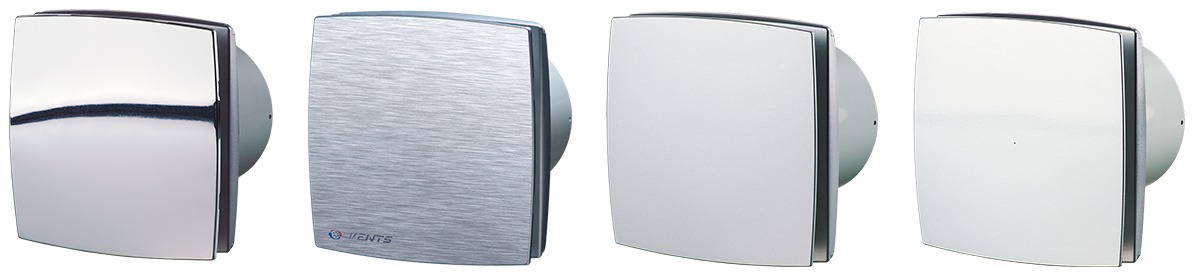

Vents LD - Design - Ventilation System

Lineup Vents LD	Luftkanalgröße, mm	Max. Förderleistung, m³/h	Schalldruckpegel LpA @ 3 m, dB(A)	Elektrische Eingangsleistung, W
Vents 100 LD	100	88	33	14
Vents 100 LD V	100	88	33	14
Vents 100 LD VT	100	88	33	14
Vents 100 LD VTH	100	88	33	14
Vents 100 LD K L	100	88	33	14
Vents 100 LD L	100	88	33	14
Vents 100 LD T L	100	88	33	14
Vents 100 LD K	100	88	33	14
Vents 100 LD TH L	100	88	33	14
Vents 100 LD T	100	88	33	14
Vents 100 LD T K	100	88	33	14
Vents 100 LD T K L	100	88	33	14
Vents 100 LD TH	100	88	33	14
Vents 100 LD TH K	100	88	33	14
Vents 100 LD TH K L	100	88	33	14
Vents 100 LD 12	100	77	32	14
Vents 100 LD V 12	100	77	32	14
Vents 100 LD T 12	100	77	32	14
Vents 100 LD TH 12	100	77	32	14
Vents 100 LD K 12	100	77	32	14
Vents 100 LD Q	100	60	25	5.5
Vents 100 LD L Q	100	60	25	0
Vents 100 LD TH L Q	100	60	25	5.5
Vents 100 LD T Q	100	60	25	5.5
Vents 100 LD T K L Q	100	60	25	5.5
Vents 100 LD T L Q	100	60	25	5.5
Vents 100 LD TH Q	100	60	25	5.5
Vents 100 LD turbo	100	115	36	16
Vents 100 LD V L turbo	100	115	36	0
Vents 100 LD L turbo	100	115	36	0
Vents 100 LD K turbo	100	115	36	0
Vents 100 LD TH L turbo	100	115	36	16
Vents 100 LD T L turbo	100	115	36	16
Vents 100 LD T turbo	100	115	36	16
Vents 100 LD TH turbo	100	115	36	16
Vents 120 LD	120	161	34
Vents 125 LD turbo	125	209	36	24
Vents 125 LD K turbo	125	209	36	24
Vents 125 LD L turbo	125	209	36	24
Vents 125 LD T turbo	125	209	36	24
Vents 125 LD T K turbo	125	209	36	24
Vents 125 LD TH K turbo	125	209	36	24
Vents 125 LD V L turbo	125	209	36	24
Vents 125 LD TH L turbo	125	209	36	24
Vents 125 LD TH turbo	125	209	36	24
Vents 125 LD T L turbo	125	209	36	24
Vents 125 LD 12	125	149	33	16
Vents 125 LD T 12	125	149	33	16
Vents 125 LD V 12	125	149	33	16
Vents 125 LD TH 12	125	149	33	16
Vents 125 LD Q	125	108	31	9.3
Vents 125 LD	125	167	34	16
Vents 125 LD V	125	167	34	16
Vents 125 LD VT	125	167	34	16
Vents 125 LD VTH	125	167	34	16
Vents 125 LD K	125	167	34	0
Vents 125 LD K L	125	167	34	0
Vents 125 LD L	125	167	34	0
Vents 125 LD T	125	167	34	16
Vents 125 LD TH	125	167	34	16
Vents 125 LD TH K	125	167	34	16
Vents 125 LD T L	125	167	34	16
Vents 125 LD TH L	125	167	34	16
Vents 125 LD TH K L	125	167	34	16
Vents 150 LD	150	265	37	24
Vents 150 LD V	150	265	37	24
Vents 150 LD VTH	150	265	37	24
Vents 150 LD K	150	265	37	0
Vents 150 LD K L	150	265	37	0
Vents 150 LD L	150	265	37	0
Vents 150 LD T	150	265	37	24
Vents 150 LD T K	150	265	37	0
Vents 150 LD T L	150	265	37	0
Vents 150 LD TH	150	265	37	24
Vents 150 LD TH K	150	265	37	0
Vents 150 LD TH L	150	265	37	0
Vents 150 LD turbo	150	310	39	29
Vents 150 LD L turbo	150	310	39	0
Vents 150 LD T L turbo	150	310	39	0
Vents 150 LD V L turbo	150	310	39	29
Vents 150 LD TH turbo	150	310	39	29
Vents 150 LD 12	150	236	36	29
Vents 150 LD TH 12	150	236	36	29
Vents 150 LD T 12	150	236	36	29
Vents 100 LD (120V/60Hz)	100
Vents 100 LD K (120V/60Hz)	100
Vents 125 LD (120V/60Hz)	125
Vents 125 LD K (120V/60Hz)	125
Vents 150 LD (120V/60Hz)	150
Vents 150 LD K (120V/60Hz)	150
Vents 150 LD (220V/60Hz)	150
Vents 150 LD K (220V/60Hz)	150
