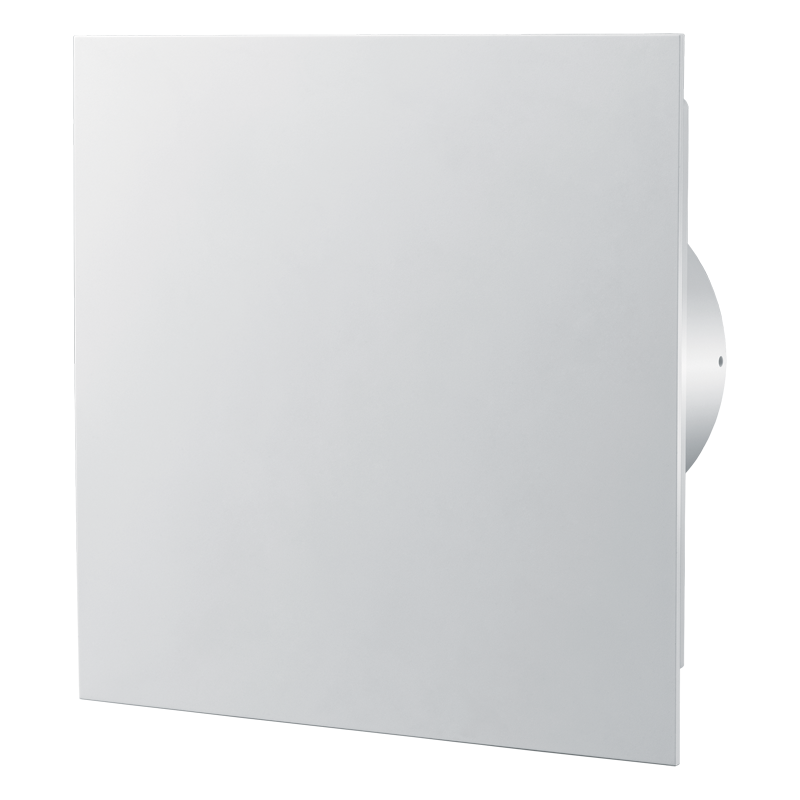

/ Product catalogue / Domestic ventilation / Residential axial fans / Design / Solid One EC / 100 Solid One EC
| Unit of measurement | 100 Solid One EC | |
| Connected air duct size | mm | 100 |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 3 |
| Unit current | A | 0.03 |
| Maximum airflow | m³/h | 90 |
| Rotation speed at 50hz | - | 2100 |
| Sound pressure level LpA at 3 m | dB(A) | 25 |
| Ingress protection rating | - | IP44 Zone 1 |
| Impeller material | - | Plastic |
| ØD | L | L1 | W |
|---|---|---|---|
| 99 | 79 | 38 | 160 |
| Name | Photo | Description |
|---|---|---|
| Vents MV 100 |
|
Two-piece plastic grilles with angled louvers |
| Name | Photo | Description |
|---|---|---|
| Vents 1805 |
|
Wall mounting |
| Name | Photo | Description |
|---|---|---|
| Vents Polyvent N |
|
Flexible uninsulated air duct made of metallized film |
| Name | Photo | Description |
|---|---|---|
| Vents KO 100 |
|
Back valve is designed for domestic fan |
| Vents KO1 100 |
|
Back valve is designed for domestic fan |
| Name | Photo | Description |
|---|---|---|
| Vents C 100 |
|
The clamps are designed for quick and reliable mounting and connection of various round ventilation system components. Clamps are made of stainless steel band |
| Name | Photo | Description |
|---|---|---|
| Vents PO 400 |
|
Window ventilators for supply ventilation |
