Vents ERV-M-180-P

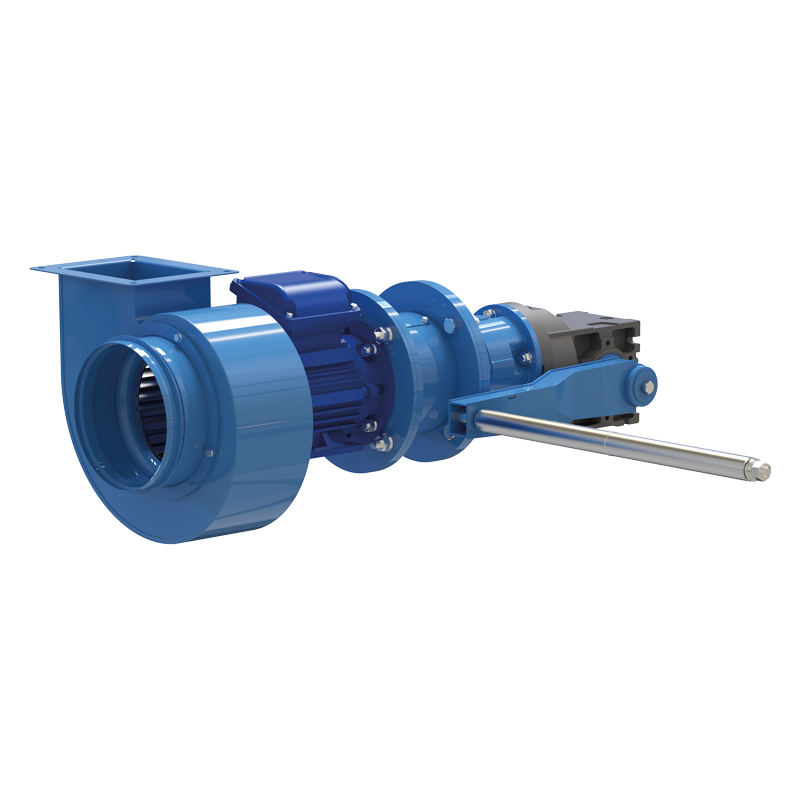

Vents ERV-M-180-P - Small electrically and manually driven centrifugal fan with vertical discharge designed to be installed in ventilation systems of shelters
Series: ERV-M
Small electrically and manually driven centrifugal fan with vertical discharge designed to be installed in ventilation systems of shelters
  • Pressure type: Middle pressure
Unit of measurement ERV-M-180-P
Phases - 3
Minimum supply voltage V 400
Maximum supply voltage V 400
Power supply frequency Hz 50
Rated power W 250
Maximum airflow m³/h 1025
Rotation speed at 50hz - 1360
Weight kg 37.5
Ingress protection rating of the drive - IP54
Maximum static pressure Pa 240
Pressure type - Middle pressure
Datasheet
"ERV-M" product description 03-2026
493 Kb
Datasheet
"Setting up ventilation systems in shelters" catalogue 2026
10.31 Mb
Manual
"ERV" user's manual 01-2026 (V270EN-04)
2.84 Mb
ERV-M-180-P - image 1
194 Kb

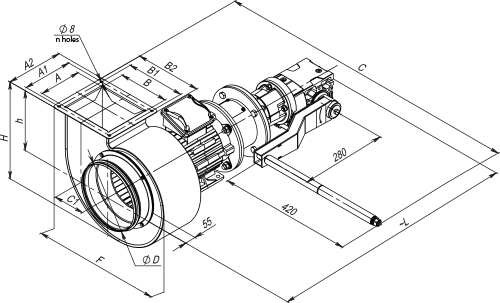

A A1 A2 B B1 B2 C C1 D n F H h L
119 146 170 144 171 195 780 123 177 4 355 305 143 740
For round ducts
Name Photo Description
Vents VVG 180 VVG 180 Flexible anti-vibration inserts for round ducts
Mounting frames for ventilation in shelters
Name Photo Description

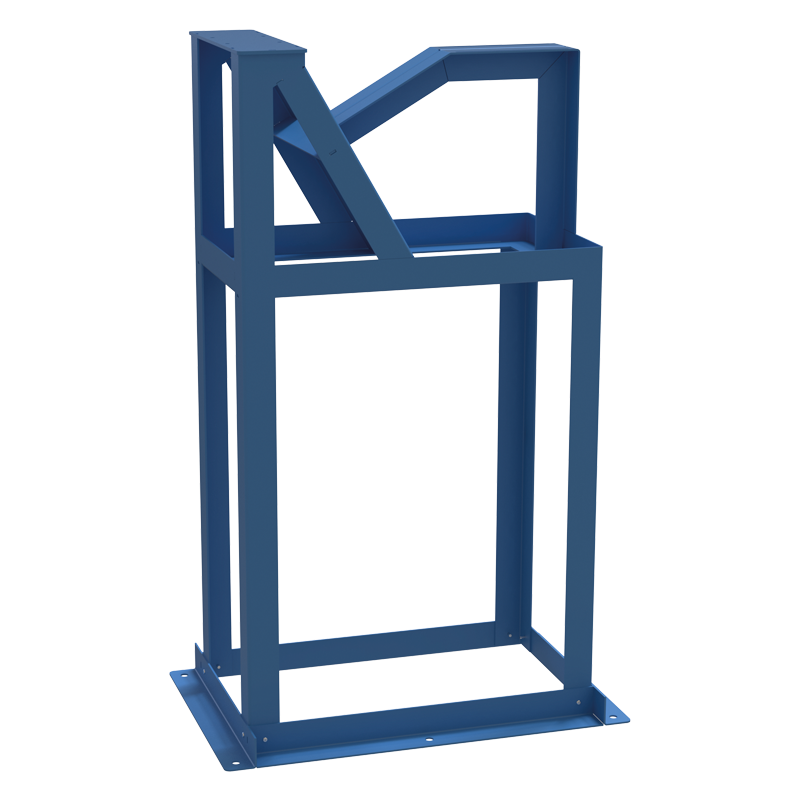

Vents RM-M-180-H RM-M-180-H Mounting frame for small electrically and manually driven fan ERV-M
Inserts for ventilation systems
Name Photo Description
Vents VVGF-ERV-M-180 VVGF-ERV-M-180 Flexible joint
Valves for ventilation in shelters
Name Photo Description
Vents VV-PM-2 VV-PM-2 Flow meter and cut-off valve (rectangular)
