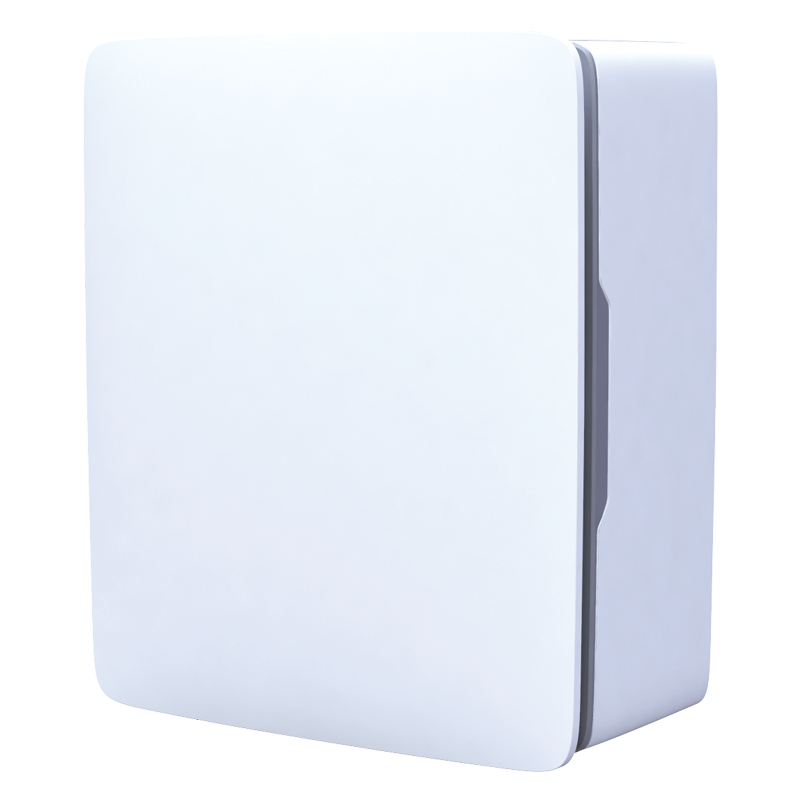

/ Product catalogue / Domestic ventilation / Domestic centrifugal fans / Classic / Fantom-A / Fantom-A| Unit of measurement | Fantom-A | ||
| Speed | - | 1 | 2 |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | |
| Rated power | W | 11 | 20 |
| Unit current | A | 0.068 | 0.089 |
| Maximum airflow | m3/h | 35 | 60 |
| Sound pressure level LpA at 3 m | dB(A) | 15 | 21 |
| Ambient air temperature min | °С | 1 | |
| Ambient air temperature max | °С | 40 | |
| Ingress protection rating | - | IP45 | |
| Impeller material | - | Plastic | |
| Trademark | Vents | |||||
| Model | Fantom-A | |||||
| Specific energy consumption (SEC) (kWh/(m2/a)) | Cold | Average | Warm | |||
| 69.2 | G | 85.6 | G | 95 | G | |
| Type of ventilation unit | Unidirectional | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m3/h) | 9 | |||||
| Electric power input (W) | 16.4 | |||||
| Reference flow rate (m3/s) | 0.001 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m3/h)) | 3.281 | |||||
| Control typology | Manual control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Sound power level (dB(A)) | 40 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 4110 | 4110 | 4110 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3355 | 1715 | 776 | ||||
