| Unit of measurement | TT Silent-M 160 R1V | ||
| Speed | - | 1 | 2 |
| Connected air duct size | mm | 160 | |
| Phases | - | 1 | |
| Minimum supply voltage | V | 230 | |
| Maximum supply voltage | V | 230 | |
| Power supply frequency | Hz | 50/60 | |
| Rated power | W | 45 | 52 |
| Unit current | A | 0.2 | 0.23 |
| Maximum airflow | m³/h | 405 | 555 |
| Rotation speed at 50hz | - | 1970 | 2645 |
| Sound pressure level LpA at 3 m | dB(A) | 26 | 33 |
| Weight | kg | 6.2 | |
| Transported air temperature (max) | °С | 60 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IPX4 | |
| Impeller material | - | Plastic | |
| Trademark | Vents | |||||
| Model | TT Silent-M 160 R1V | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -52.8 | A+ | -25.7 | C | -10.2 | E | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Multi-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 470 | |||||
| Electric power input (W) | 52 | |||||
| Reference flow rate (m³/s) | 0.091 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.137 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Sound power level (dB(A)) | 33 | |||||
| Declared typology | RVU UVU | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 102 | 102 | 102 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||

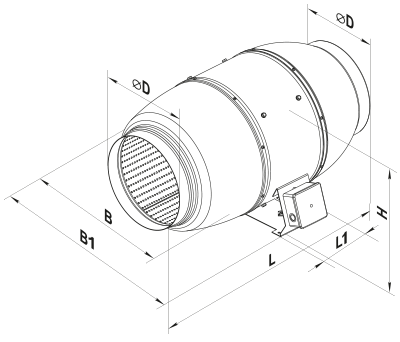

| ∅D | B | B1 | H | L | L1 |
|---|---|---|---|---|---|
| 157 | 231 | 273 | 263 | 580 | 44 |
| Name | Photo | Description |
|---|---|---|
| Vents SR 160/1200 |
|
Silencers made of galvanized steel filled with non-combustible sound-absorbing material |
| Vents SRF 160/2000 |
|
Silencers made of aluminium alloy filled with non-combustible sound-absorbing material |
| Vents SRP 160/500 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 160/600 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 160/750 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 160/900 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 160/1200 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 160/1500 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 160/2000 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Name | Photo | Description |
|---|---|---|
| Vents FB K2 160 G4/F8 UV |
|
Filter boxes with a high purification level and air disinfection |
| Vents FB K2 160 G4/C/F8 UV |
|
Filter boxes with a high purification level and air disinfection |
| Vents FB K2 160 G4/H13 UV |
|
Filter boxes with a high purification level and air disinfection |
| Vents FB K2 160 G4/C/H13 UV |
|
Filter boxes with a high purification level and air disinfection |
| Vents FB K2 160 UV |
|
Filter boxes with a high purification level and air disinfection |
| Vents FB 160 |
|
Round panel air filters |
| Vents FBV 160 |
|
Round panel air filters with a large filtration area |
| Vents FBK 160-4 |
|
Round bag air filters |
| Vents FBK 160-5 |
|
Round bag air filters |
| Vents FBK 160-7 |
|
Round bag air filters |
| Name | Photo | Description |
|---|---|---|
| Vents NKV 160-2 |
|
Inline water supply air heaters or heater for air handling units with a round cross-section |
| Vents NKV 160-4 |
|
Inline water supply air heaters or heater for air handling units with a round cross-section |
| Name | Photo | Description |
|---|---|---|
| Vents NK 160-1,2-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 160-1,7-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 160-2,0-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 160-2,4-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 160-3,4-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 160-3,6-3 |
|
Round electric inline heaters with round cross-section |
| Vents NK 160-5,1-3 |
|
Round electric inline heaters with round cross-section |
| Vents NK 160-6,0-3 |
|
Round electric inline heaters with round cross-section |
