/ Product catalogue / Commercial and industrial ventilation / Inline fans / For rectangular ducts / VKPF / VKPF 4E 600x300
| Unit of measurement | VKPF 4E 600x300 | |
| Connected air duct size | mm | 600x300 |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50 |
| Rated power | W | 1240 |
| Unit current | A | 6.45 |
| Maximum airflow | m³/h | 2950 |
| Rotation speed at 50hz | - | 1360 |
| Sound pressure level LpA at 3 m | dB(A) | 59 |
| Weight | kg | 35 |
| Transported air temperature (max) | °С | 50 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Galvanized steel |
| Trademark | Vents |
| Model | VKPF 4E 600x300 |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 479 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 34.7 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.775 |
| Sound power level (dB(A)) | 79 |
| B | B1 | B1 | H | H1 | H2 | H3 | L |
|---|---|---|---|---|---|---|---|
| 600 | 620 | 640 | 300 | 320 | 340 | 375 | 680 |
| Name | Photo | Description |
|---|---|---|
| Vents SR 600x300 |
|
Plate silencer for installation in rectangular ducts |
| Name | Photo | Description |
|---|---|---|
| Vents FB 600x300 |
|
Rectangular panel air filters |
| Vents FBK 600x300-4 |
|
Rectangular bag air filters |
| Vents FBK 600x300-5 |
|
Rectangular bag air filters |
| Vents FBK 600x300-7 |
|
Rectangular bag air filters |
| Name | Photo | Description |
|---|---|---|
| Vents KOM1 600x300 |
|
Backdraught gravity dampe for shutting off air flow in rectangular air ducts |
| Vents KR 600x300 |
|
Air dampers for controlling air flow in rectangular air ducts |
| Vents KG 600x300 |
|
Gravity valve for automatic airflow shut-off in round air ducts |
| Name | Photo | Description |
|---|---|---|
| Vents VVG 600x300 |
|
Flexible anti-vibration inserts for round air ducts |
| Name | Photo | Description |
|---|---|---|

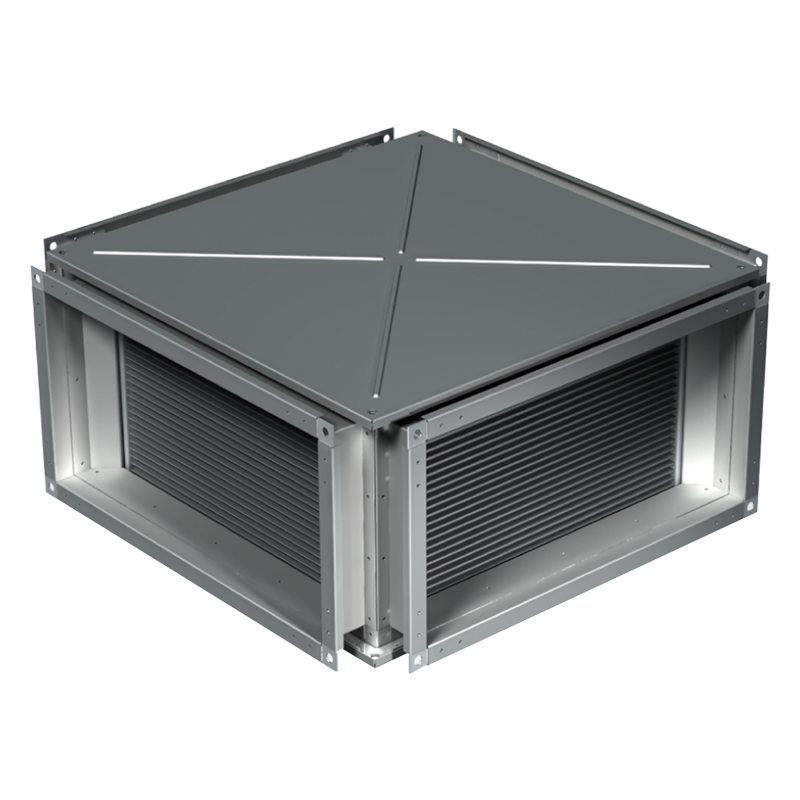

| Vents PR 600x300 |
|
Cross-flow plate heat exchangers for rectangular air ducts |
| Name | Photo | Description |
|---|---|---|
| Vents SKRA 600x300/24 |
|
Mixing chambers for mixing (recirculating) part of the exhaust air with the outdoor air in the appropriate proportion |
| Name | Photo | Description |
|---|---|---|
| Vents NKV 600x300-2 |
|
Inline water supply air heaters or heater for air handling units with a rectangular cross-section |
| Vents NKV 600x300-4 |
|
Inline water supply air heaters or heater for air handling units with a rectangular cross-section |
| Name | Photo | Description |
|---|---|---|
| Vents NK 600x300-9,0-3 |
|
Rectangular electric inline heaters |
| Vents NK 600x300-12,0-3 |
|
Rectangular electric inline heaters |
| Vents NK 600x300-15,0-3 |
|
Rectangular electric inline heaters |
| Name | Photo | Description |
|---|---|---|
| Vents RRV 600x300 |
|
Air flow controllers |
| Name | Photo | Description |
|---|---|---|
| Vents RSA5E-7,5-T |
|
Speed controllers are applied for air flow control of single phase fans by means of motor step speed control |
| Name | Photo | Description |
|---|---|---|
| Vents OKW 600x300-3 |
|
Rectangular inline water coolers |
| Name | Photo | Description |
|---|---|---|
| Vents OKF 600x300-3 |
|
Rectangular inline direct evaporative coolers |
