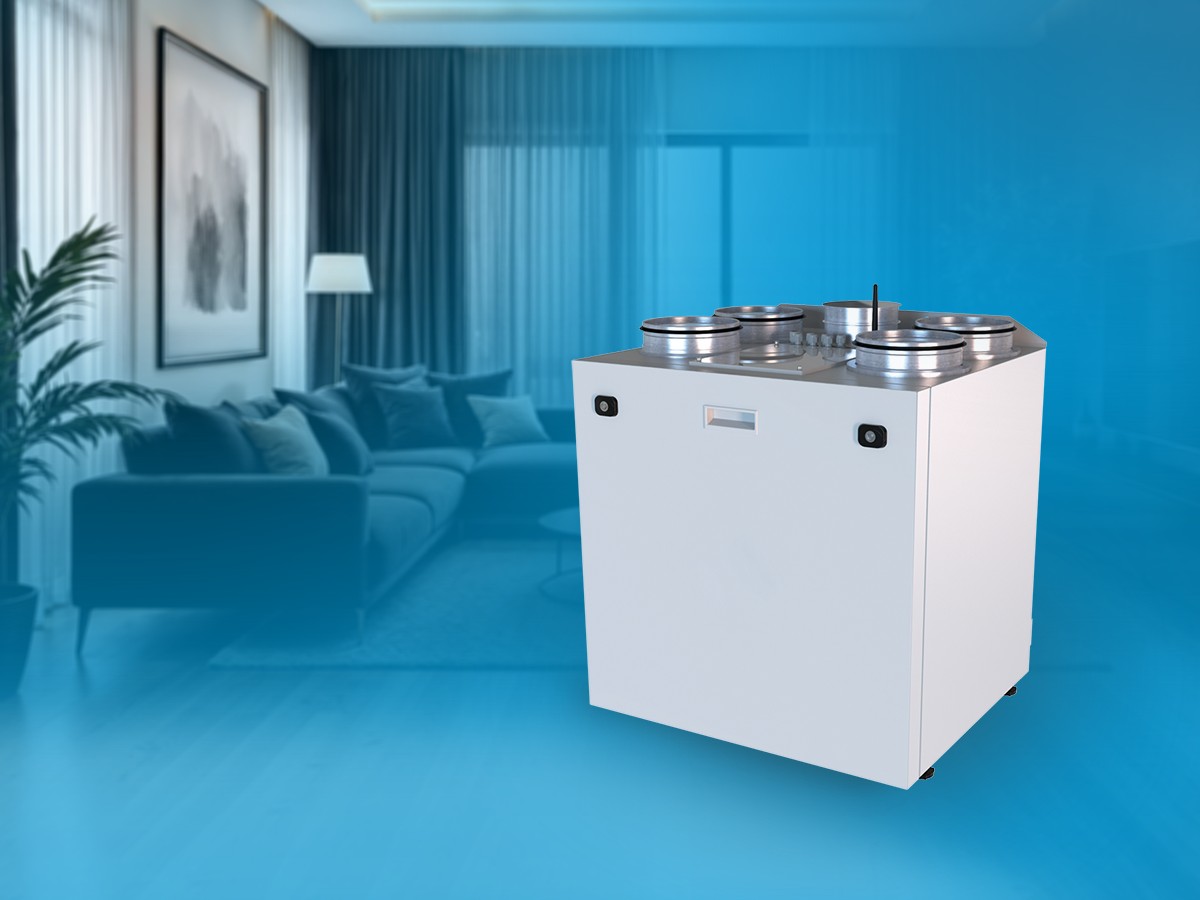

The units provide fresh, purified air, remove polluted air, and retain heat and humidity in the room. They are used in the ventilation and air conditioning systems of residential and commercial spaces requiring an affordable solution and a controllable ventilation system.
VUTR V EC units are equipped with EC motors with a centrifugal impeller, which ensure quiet operation and low power consumption. The maximum air flow offered by the units reaches 747 m³/h.
The air handling units can be optionally equipped with an enthalpy rotary regenerator with a recovery efficiency of up to 89%. These heat exchangers not only recover heat, but also moisture, preventing the air in the room from drying out in winter.
The unit's casing is made of galvanized steel with internal heat and sound insulation made of mineral wool. Two built-in G4 class filters are used to filter the intake air in the unit (an F7 filter can be installed as an option).
VUTR V EС units are equipped with a built-in control system. The A21 controller makes it possible to integrate the devices into a Smart Home or BMS system. The unit is controlled via the Vents Home app via Wi-Fi. The unit can also be connected to the Internet and controlled via the Vents Cloud Server.
The VUTR V EC unit can be optionally equipped with humidity and CO₂ sensors. The VUTR VE EC model has an electric heater.
