VENTS Non-insulated air ducts Aluvent series

VENTS Non-insulated air ducts Aluvent series

Semi-flexible aluminium air ducts.

Model features
  • Ventilation ducts and fittings
  • Description
  • Downloads
Description
Description
DESCRIPTION FEATURES
  • Flexible spiral seam aluminium band air ducts with high aerodynamic and strength characteristics.
  • Made of incombustible, corrosion-resisting aluminium band.
  • Specially designed high-quality locks ensure high seam tightness and total air tightness of the ducts.
  • Low dynamic losses.
  • Low weight, high elasticity and easy mounting.
RECOMMENDED APPLICATION
  • Applied in residential and industrial ventilation, air conditioning and heating systems with the maximum pressure 10 000 Pa.
  • For supply and exhaust ventilation.
TECHNICAL DATA:

Item Aluvent M Aluvent N Aluvent S Aluvent D
Diameter range [mm] 80/100/110/120/125/130/140/150/160/180/200/250/315
Material Aluminium Aluminium Aluminium Aluminium
Number of layers 1 1 1 1
Total thickness [μm] 50 80 100 2х50
Operating temperature range [°C] -30 +250 -30 +250 -30 +250 -30 +250
Maximum air speed [m/s] 30 30 30 30
Maximum operating pressure [Pa] 8000 10000 10000 10000
Minimum bend radius [mm] 0.70хD 0.73хD 0.76хD 0.85хD
Length [m] 1; 2; 2,5; 3; 6 1; 2; 2,5; 3; 6 1; 2; 2,5; 3; 6 1; 2; 2,5; 3; 6

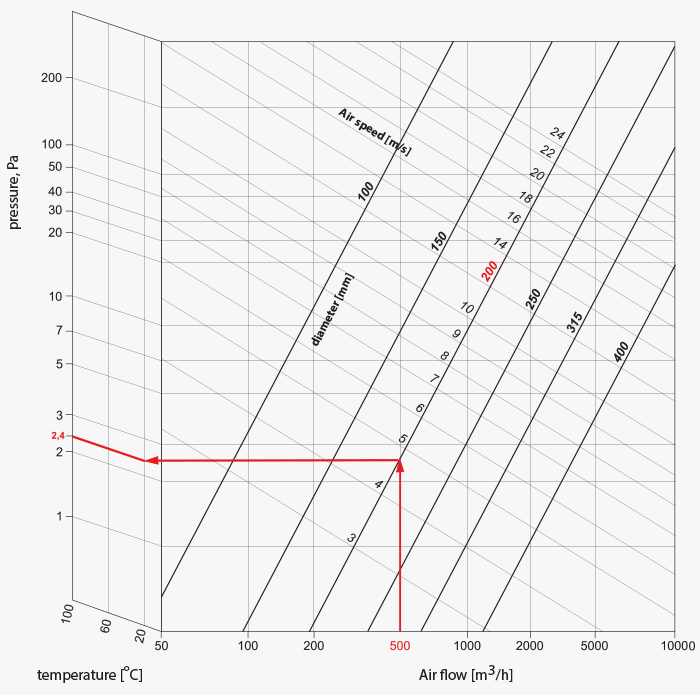

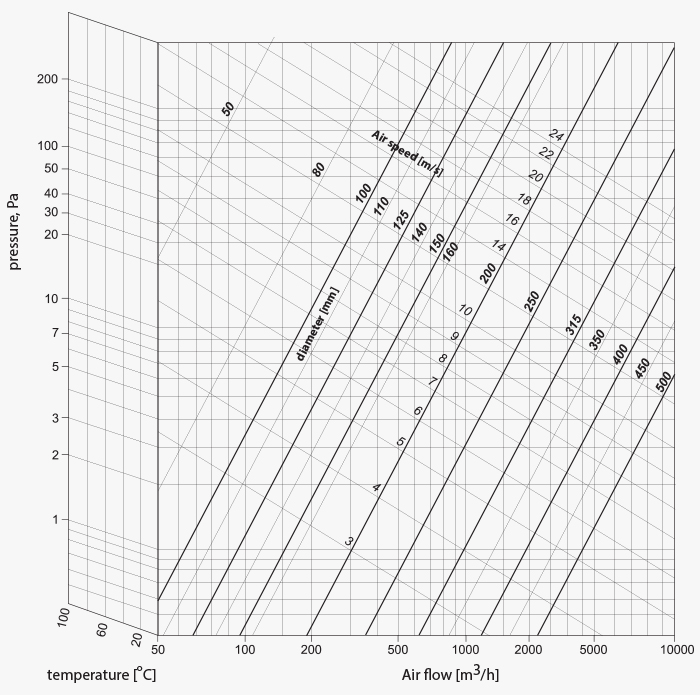

PRESSURE LOSS DIAGRAM PER 1 M STRETCHED AIR DUCT CALCULATION EXAMPLE:


  1. Select a curve that matches the air duct diameter [mm], 200 mm in this case.
  2. Find the intersection point of this line with the vertical line of the required air flow in m3/h, 500 m3/h in this case.
  3. The horizontal line that shows the pressure loss in Pa per 1 m straight air duct crosses this intersection point.
  4. Multiply pressure loss value (2.4 Pa/m at 20°С) by total air duct length to get the total pressure loss value. To calculate pressure loss in case of bends consider each bend as extra air duct meter.
