Series Vents Evo EC

Name: Vents Evo EC
Brand: VENTS
Availability: InStock

Series Vents Evo EC - Design - Residential axial fans

Coming soon

Axial decorative exhaust fans with a decorative front panel, equipped with energy-efficient EC motors

Impeller type: Axial
Short spigot

The Vents Evo EC series is a range of modern axial exhaust fans with a decorative panel designed for comfortable ventilation of residential spaces. They offer quiet operation, low power consumption, and consistent performance. The series’ minimalist design blends seamlessly into any interior, while its compact design with a short flange makes it easy to install.

Features of the Vents Evo EC Series

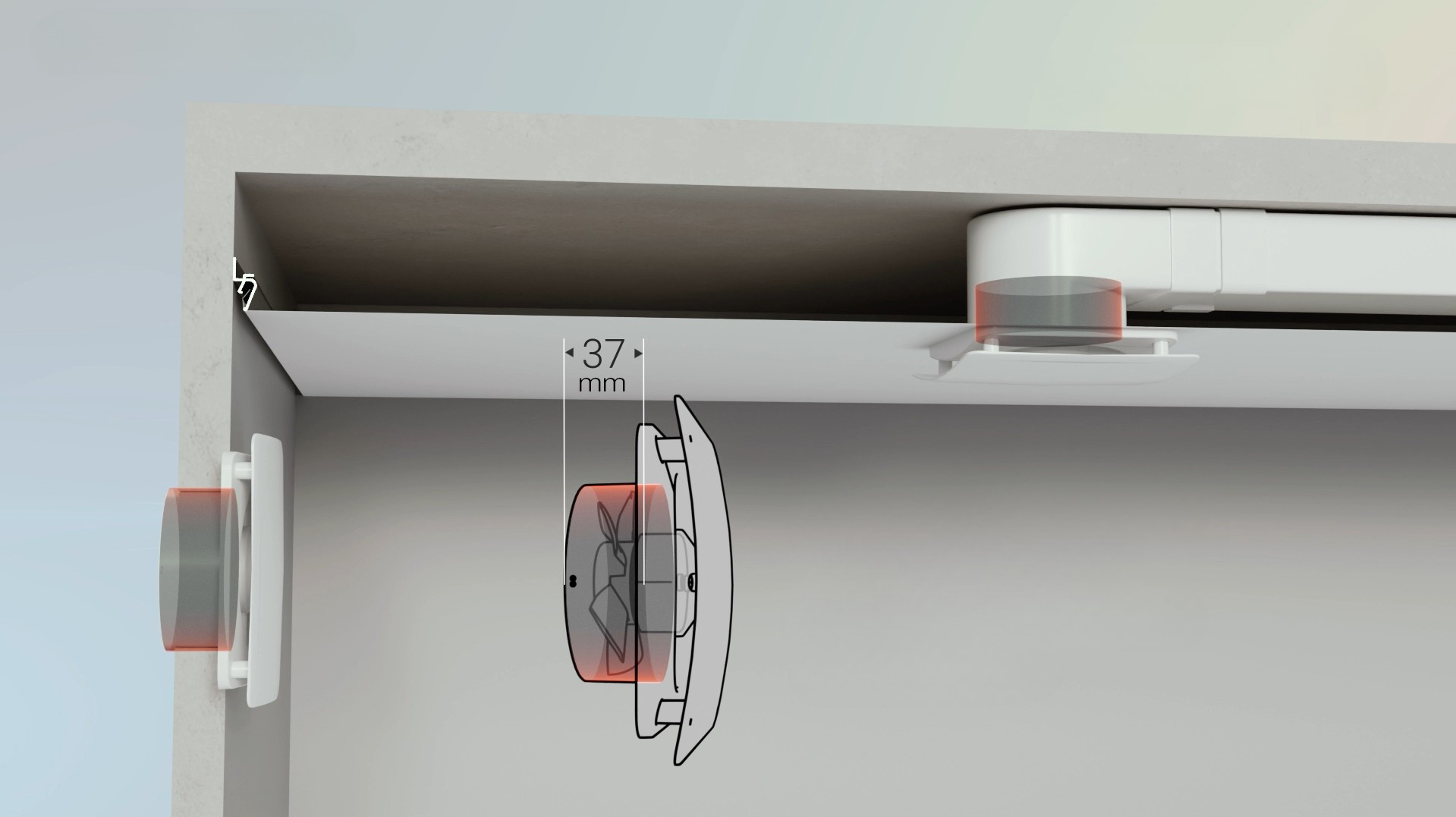

A short, 37 mm deep flange allows the fan to be installed in the thinnest walls and interior partitions. This also offers a significant advantage for ceiling installation: the shorter the flange, the less the suspended ceiling needs to be lowered. This solution preserves the height of the room, which is important for modern interiors.

Air flow up to 87 m³/h ensures effective air circulation even in large, frequently used living spaces, efficiently removing excess moisture and odors.

A reliable check valve automatically shuts off the air duct when the fan is turned off, preventing backdraft and the inflow of odors from the common ventilation shaft into the room. This reduces drafts and heat loss during the cold season.

A noise level of 22 dBA ensures comfortable and virtually inaudible operation of the fan. This is achieved thanks to an aerodynamic impeller with minimal air drag, as well as a state-of-the-art EC motor on ball bearings with incredibly low power consumption starting at 2 W. Combined, these features ensure quiet fan operation even during prolonged use.

Application

The combination of efficient air exchange, quiet operation, and stylish design makes the Vents Evo EC series an ideal solution for living spaces.

The Vents Evo EC is designed to ventilate:

washrooms
shower rooms
kitchens
laundry rooms
other residential spaces and areas

The fan can be easily installed in ventilation shafts or connected to Ø100 mm air ducts. Flexible air ducts can be used, if necessary, which is convenient when the duct is located remotely. Thanks to its simple fastening with screws, the model is suitable for both wall and ceiling mounting.

Available сolors

The Vents Evo EC series is available in two classic colors — white and black — allowing you to choose the best option for any interior style. The use of high-quality, UV-resistant plastic ensures that the color remains vibrant throughout the entire service life.

Models available in the Vents Evo EC Series

The Vents Evo EC series includes a special model with optimized performance characteristic.

Name	Designation
Evo EC Q	The fan is equipped with a low-power motor, allowing it to achieve minimal noise levels while maintaining the necessary air flow

FAQ

How to Choose a Residential Fan?

First of all, determine your specific needs and figure out what matters to you: quiet operation, smart features, energy efficiency, or performance. The choice depends on the size of the room and its intended use (bathroom, kitchen, or utility room). To make the right choice, you need to calculate the required air exchange rate.

Fans also come with various options and features: timers, humidity or motion sensors, check valves, and other functions that make them more convenient to use. Since your choice depends on your individual needs and the specific features of your room, we recommend that you consult a specialist to find the best solution.

Should the Fan Be Cleaned?

Yes, fans from the Vents Evo EC series should be cleaned at least once every six months, following the instructions provided in the user manual for each model.

To do this, remove the front panel, clean the fan with a soft, dry cloth or brush, and rinse the front panel with running water. Then wipe all surfaces of the fan dry and put the panel back in place. After that, connect the fan to the power supply.

How Do I Install It?

Any work related to the installation of VENTS Evo EC series residential fans must be performed in accordance with the instructions in the manual provided with each model. The fans should be installed directly into the ventilation shaft opening. If the shaft is located at a distance, flexible air ducts may be used, which are connected to the fan’s outlet flange using a clamp. The fan can be mounted on either a wall or a ceiling; it is fastened using screws.

After installing, the fan should be connected to the power supply; it is then recommended to test its operation and ensure that all functions are working properly.

Important: It is best to have a qualified professional handle installation and electrical wiring to ensure safe operation and avoid damaging the fan or the interior.

What Does a Noise Level of 22 dBA Mean, and How Does It Feel in Real Life?

A noise level of 22 dBA means that the fan operates extremely quietly. For comparison, this is roughly similar to the sound of rustling leaves. In real life, such a fan is practically inaudible—it won’t interfere with you having a conversation, relaxing in the bathroom, or cooking in the kitchen.

Lineup Vents Evo EC	Connected air duct size, mm	Rated power, W	Maximum airflow, m³/h	Sound pressure level LpA at 3 m, dB(A)	Number of speeds
Vents 100 Evo EC white	100	2.7	87	34	1
Vents 100 Evo EC black	100	2.7	87	34	1
Vents 100 Evo EC Q white	100	2	50	22	1
Vents 100 Evo EC Q black	100	2	50	22	1
