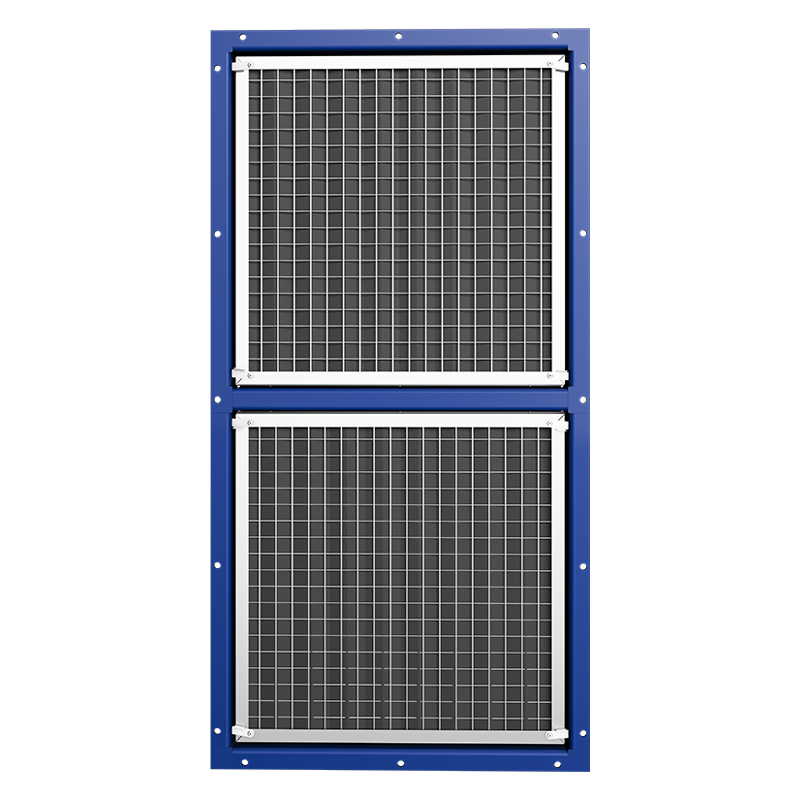

RMF is designed for a FYR honeycomb filters to be installed flat in the supply ventilation systems of shelters, forming sections for preliminary and coarse dust removal from the air. The filters are installed in a single plane, usually perpendicular to the direction of air flow, in openings made in the structural elements of ventilation chambers.
The RMF frame is made of powder-coated carbon steel in accordance with RAL 5007 Muar in the form of a rectangular welded frame. Each cell is equipped with fastening brackets that reliably secure the filter and allow for easy replacement if necessary.
The transported air temperature should be from -20 °C to +40 °C. The device can be operated in a temperate (Y) climate of the 2nd placement category (Y2) in compliance with the DSTU 15150 standard.
Vents RMF-1
