GENERAL DESIGN REQUIREMENTS

Civil defense shelters must be equipped with ventilation systems that provide purified air and remove heat and moisture from interior spaces. The main operating mode is mode I — clean ventilation, which provides a continuous supply of air for 48 hours.

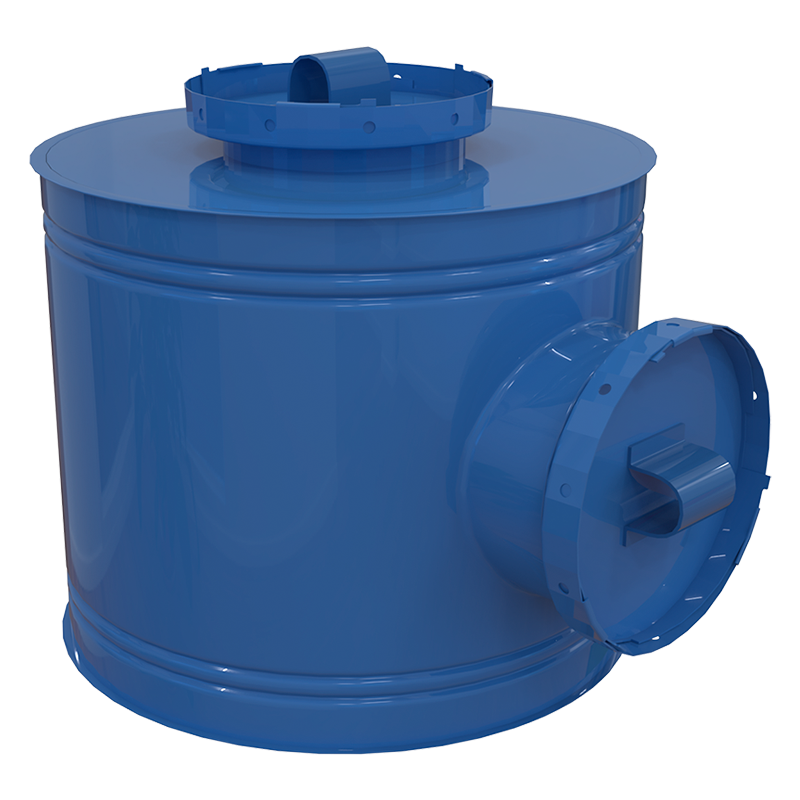

The air supplied by mechanical ventilation is purified through coarse filters (FYR or similar) with an efficiency coefficient of at least 0.8.

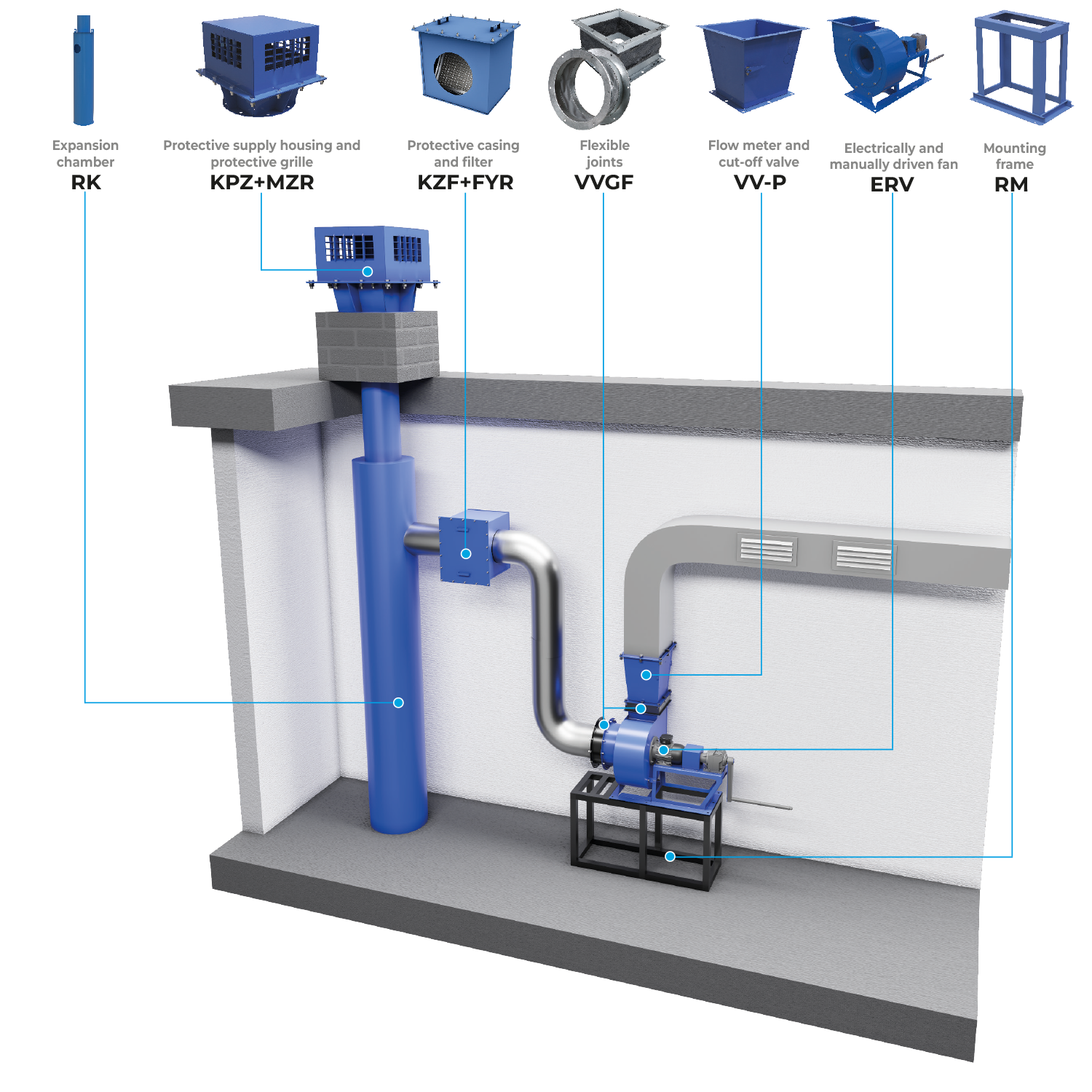

Protective structures require electrically and manually operated ventilation units to be installed, each equipped with a check valve — acting as an air flow indicator. When determining the number of electrically driven ventilation units to be installed in parallel, a correction factor of 0.8 should be applied to their air flow. It is important that the length of the air duct connecting the ventilation unit to the furthest ventilation outlet be no more than 30 meters.

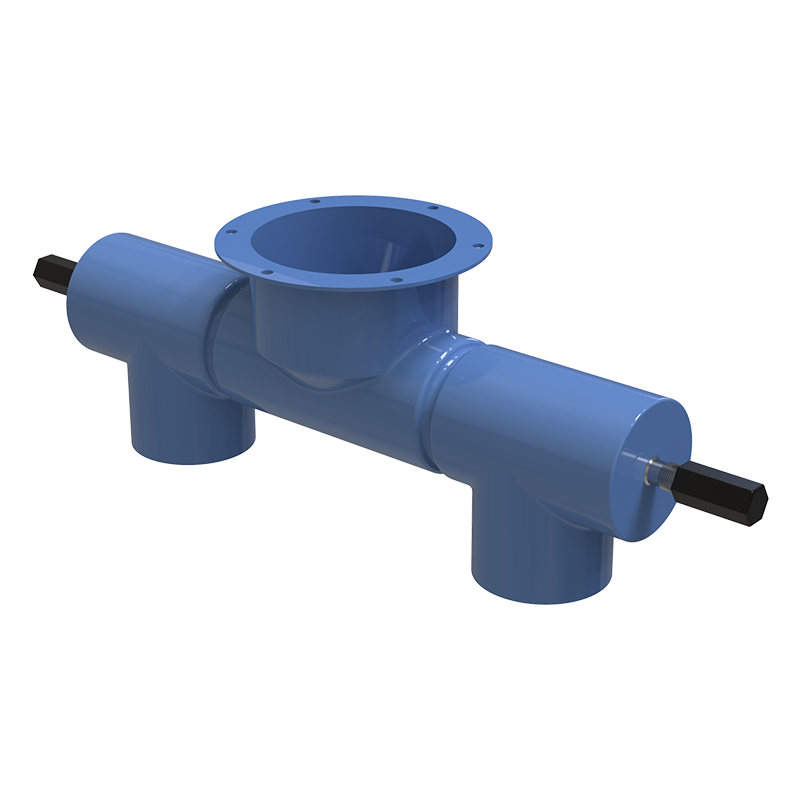

Air ducts for supply and exhaust systems laid outside are made of building structures designed to withstand air shock waves, or are assembled from welded steel pipes and must be laid at a slope of 0.003 or more away from the protective structure (dual-purpose structure). All ventilation openings (air intakes and exhaust devices) must be equipped with explosion-proof devices that protect ventilation systems from excessive air shock wave pressure; an expansion chamber must be installed downstream of them. In this case, condensate drainage should be provided upstream of the explosion-proof device.

Ventilation of rooms intended for installing autonomous power supply, as well as clean and contaminated areas of sanitary inspection rooms, should be provided through separate air ducts from the air ducts of other ventilation systems. Air intake grilles should be located outside the possible debris of buildings and structures.

BASIC DESIGN REQUIREMENTS FOR FALLOUT SHELTERS

A fallout shelter is an engineered structure, partially equipped with special equipment, designed to protect the shelter from ionizing radiation and conventional weapons. A fallout shelter is not an airtight structure and is not equipped with airtight valves and air purification systems that use filter ventilation units. Fallout shelters (FSs) should be equipped with mechanically driven ventilation. In FSs' rooms, the maximum allowed indoor climate parameters and gas composition of the air are determined depending on the number of people taking shelter, as per mode I (clean ventilation). Fans for ventilation systems in FSs that do not have a protected autonomous power supply or diesel power plant (DPP) should be equipped with an electric and manual drive. All ventilation openings must be equipped with dust filters with an air flow resistance of at least 5 N/m² (0.5 kgf/m²).

USE OF VENTS EQUIPMENT IN FALLOUT SHELTERS
BASIC DESIGN REQUIREMENTS FOR SHELTERS AND SHELTER-LIKE DUAL-PURPOSE STRUCTURES (DPS)

Shelters and shelter-like dual-purpose structures (DPS) are airtight protective structures equipped with special engineering equipment and life support systems, in particular filter ventilation and air regeneration systems. They provide continuous shelter for persons to be sheltered for 48 hours.
They guarantee comprehensive protection against weapons of mass destruction (nuclear, chemical, biological weapons), as well as conventional weapons.

for an emergency pressure of at least 0.1 MPa (1 kgf/cm²), with manual drive for dimensions up to 600 mm inclusive and with electric drive if there is a DPP or dimensions over 600 mm.
For their inspection and cleaning, hatch inserts are provided, which are mounted facing the shock wave after the airtight valve.
Air ducts of shelters and shelter-like DPSs, laid inside rooms to airtight valves, connecting air ducts between air intakes for clean ventilation and filter ventilation, as well as pipes for installing airtight valves in walls, shall be made of steel pipes with a wall thickness of at least 8 mm.

The ventilation system for shelters and shelter-like DPSs should be equipped for two modes of operation:

  1. Clean ventilation – mode I;
  2. Filter ventilation – mode II (for 12 hours);

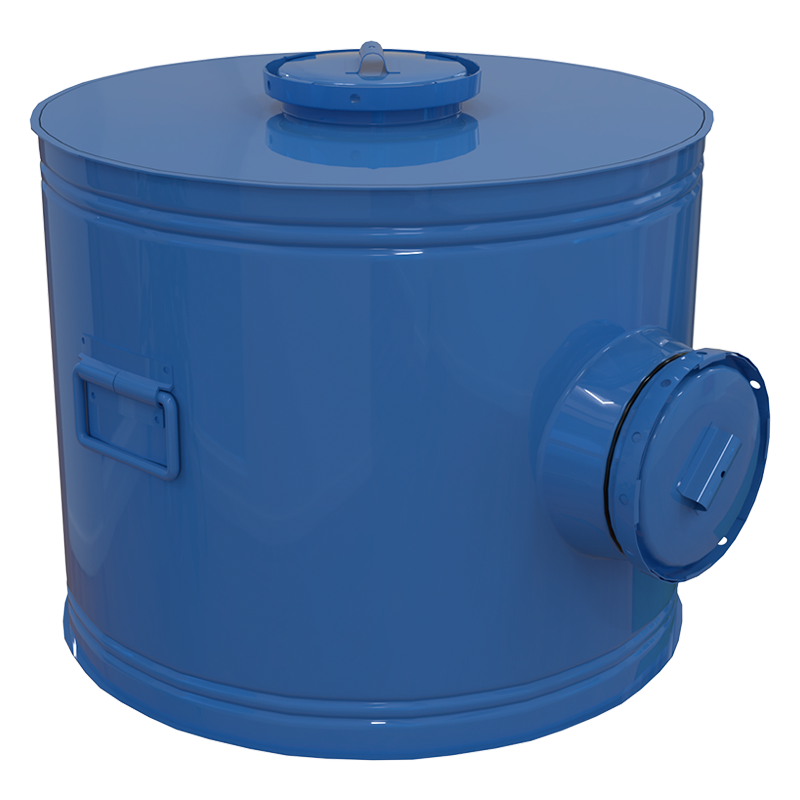

    • It provides for the removal of gaseous weapons of mass destruction, aerosols, and dust using special filters (FP, FPU).
    • Filter ventilation equipment, in particular filter ventilation kits, shall be installed in a separate room – the filter ventilation chamber.
    • Filter air ducts must be made of steel pipe or sheet steel at least 2 mm thick.

The amount of outdoor air supplied to the protective structure (dual-purpose structure) must be as follows:

  • in clean ventilation mode (mode I) – up to 11 m³/h per person;
  • in filter ventilation mode (mode II) – at least 2 m³/h per person sheltered, 5 m³/h per employee in the control room, and 10 m³/h per employee in the filter ventilation chamber with electrically and manually driven fans.

The operating air pressure for mode II should be 50 Pa.
For filter ventilation and regeneration, a sufficient air volume should be recirculated to maintain the volume of air supplied during clean ventilation in the system: for shelters and DPSs with electric fans, at least 70 % of the air volume must be retained in the system.
Air intakes should be located out of the possible debris zone of buildings and structures.
Air intakes for filter ventilation systems may be located in areas where debris may accumulate and in the vestibule of a shelter (dual-purpose structure).
It is recommended that the air intake box for clean ventilation of shelters and DPSs (mode I) be connected to the emergency exit from the shelter.
To ensure separate exits from the shelter or DPS to the surface and re-entry in filter ventilation mode, ventilation of the vestibule or vestibule-airlock of one of the entrances should be provided.
In this case, the volume of air supplied to this vestibule per hour should be at least 25 times the volume of the vestibule with a ventilation duration of up to 6 minutes.
Ventilation of the vestibule (airlock) should be carried out by flowing air into the shelter/DPS using overpressure valves, which should be installed on the inner and outer walls of the vestibule (airlock), with an explosion-proof device installed on the external pressure relief valve (KNTK) or directly from the filter ventilation system.
When installing ventilation, additional exhaust ventilation should be provided for bathrooms.
The air flow in ventilation mode I should be 100 m³/h for each toilet and 50 m3/h for each urinal.
For ventilation mode II, it is allowed to reduce the specified air flow rate from the toilet to 25 m³/h.

MODE III - AIR REGENERATION (6 HOURS)

Mode III – internal air regeneration – is intended for shelters and shelter-like DPSs located in areas where there is a risk of dangerous air contamination with combustion products, in areas of possible chemical contamination or flooding.


In full isolation mode (mode III), the shelter is ventilated as follows:

  • Primarily, supply ventilation of premises is used, operating in 100 % recirculation mode and ensuring that the air volume specified for Mode I – clean ventilation mode – is maintained in the system.
  • If the air pollution reaches a critical level (carbon dioxide concentration — 2 %), the internal air is regenerated by removing CO₂ using regenerative cartridges and enriching it with oxygen from O₂ cylinders located in the shelter.
  • Для забезпечення нормованого експлуатаційного підпору повітря передбачається встановлення балонів зі стисненим повітрям у кількості, визначеній виходячи з розрахункового значення підпору — 20 Па.
  • Indoor air quality is monitored with a gas analyzer.
  • Excess heat is removed in full isolation mode (mode III) using an air cooler. Water from an underground reservoir is used to cool it.


In partial isolation mode (mode III), the standard operating air pressure of 20 Pa is maintained by supplying outdoor air purified using special filters.

Sequence of filter application:

  • Before being fed to CO purification system, air is cooled down to the operating temperature of filters using a gravel cooler.
  • Next, air is purified from CO by oxidizing it to CO₂ in special filters designed to remove carbon monoxide.
  • After CO is oxidized to CO₂, the air is cooled to the operating temperature of special sorption elements. CO₂ purification is carried out using appropriate filter elements designed to absorb carbon dioxide. CO₂ removal is necessary both after CO purification and while regenerating the internal air.
  • After passing through the sorption elements, the air is further cooled with a water cooler.
  • The purified and cooled air is fed into the recirculation system to ensure an operating pressure of 20 Pa. The equipment provided for mode II, such as filters, coolers, and fans, is used.
  • In partial isolation mode (mode III), all airtight valves remain closed, except for the one that provides outside air intake to create back pressure.
